srecord::input_generator Class Reference

The srecord::input_generator class is used to represent the state of generating data from whole cloth. More...

#include <generator.h>

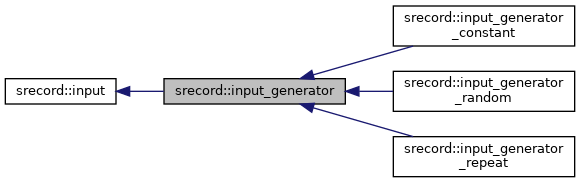

Inheritance diagram for srecord::input_generator:

Collaboration diagram for srecord::input_generator:

Public Member Functions
virtual	~input_generator ()
	The destructor. More...
	input_generator (const interval &range)
	The constructor. More...
Public Member Functions inherited from srecord::input
virtual	~input ()
	The destructor. More...
virtual void	fatal_error (const char *,...) const FORMAT_PRINTF(2
	The fatal_error method is used to report problems parsing the file. More...
virtual void virtual void	fatal_error_errno (const char *,...) const FORMAT_PRINTF(2
	The fatal_error_errno method is used to report problems reading the input file. More...
virtual void virtual void virtual void	warning (const char *,...) const FORMAT_PRINTF(2
	The warning method is used to report potential (but non-fatal) problems parsing the file. More...
virtual void virtual void virtual void virtual std::string	filename (void) const =0
	The filename method is used to get the name of the input file being processed. More...
virtual std::string	filename_and_line (void) const
	The filename_and_line method is used to get the name and current line number within the file. More...
virtual const char *	get_file_format_name (void) const =0
	The get_file_format_name method is used to find out the name of the file format being read. More...
void	set_quit (quit &)
	The set_quit method is used to set the disposition of the error messages, and the "exit" implementation. More...
void	reset_quit (void)
	The reset_quit method is used to cause the disposition of the error messages, and the "exit" back to the default. More...
virtual void	command_line (srecord::arglex_tool *cmdln)
	The command_line method is used by arglex_srec::get_input when parsing the command line, to give a format or filter an opportunity to grab extra arguments off the command line. More...

Static Public Member Functions
static input::pointer	create (arglex_tool *cmdln)
	The create class method may be used to create new instances of input data generators. More...

Protected Member Functions
bool	read (record &record)
	The read method is used to read one record from the input. More...
void	disable_checksum_validation ()
	The disable_checksum_validation method is used to have this input stream ignore checksum errors. More...
virtual unsigned char	generate_data (unsigned long address)=0
	The generate_data method is used to manufacture data for a specific address. More...
Protected Member Functions inherited from srecord::input
	input ()
	The default constructor. More...

Additional Inherited Members
Public Types inherited from srecord::input
typedef std::shared_ptr< input >	pointer

Detailed Description

The srecord::input_generator class is used to represent the state of generating data from whole cloth.

Definition at line 33 of file generator.h.

Constructor & Destructor Documentation

~input_generator()

virtual srecord::input_generator::~input_generator ( )

virtual

The destructor.

input_generator()

srecord::input_generator::input_generator

(

const interval &

range

)

The constructor.

Parameters

range

The data range over which data is to be generated.

Member Function Documentation

create()

static input::pointer srecord::input_generator::create ( arglex_tool *  cmdln )

static

The create class method may be used to create new instances of input data generators.

Parameters

cmdln

The command line arguments, for deciding what to generate.

read()

bool srecord::input_generator::read ( record &  rec )

protectedvirtual

The read method is used to read one record from the input.

It returns 0 at the end of the input, and 1 if a record is read successfully.

See the srecord::record documentation (header file) for details of the various record types.

Note: there is no guarantee that a header record will appear first, or that a execution start address record will appear last.

Parameters

rec	Where to put the returned data.

Returns

bool; true if data was read, false if at end-of-file

Implements srecord::input.

disable_checksum_validation()

void srecord::input_generator::disable_checksum_validation ( )

protectedvirtual

The disable_checksum_validation method is used to have this input stream ignore checksum errors.

Implements srecord::input.

generate_data()

virtual unsigned char srecord::input_generator::generate_data ( unsigned long  address )

protectedpure virtual

The generate_data method is used to manufacture data for a specific address.

Parameters

address

The address to generate data for.

Returns

one byte of data

Implemented in srecord::input_generator_repeat, srecord::input_generator_random, and srecord::input_generator_constant.

---

The documentation for this class was generated from the following file:

• input/generator.h
