The srecord::output_file class is used to represent a generic output file. More...

#include <file.h>

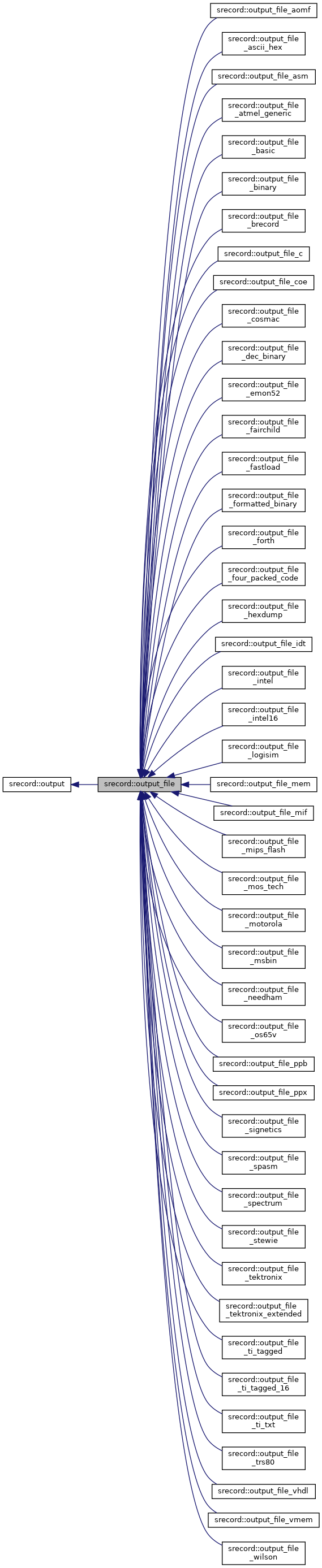

Inheritance diagram for srecord::output_file:

[legend]

Collaboration diagram for srecord::output_file:

Public Member Functions
virtual	~output_file ()
	The destructor. More...

	output_file ()
	The default constructor. More...

	output_file (const std::string &file_name)
	The constructor. More...

virtual const std::string	filename (void) const
	The filename method is used to determine the name of the output file. More...

Public Member Functions inherited from srecord::output
virtual	~output ()
	The destructor. More...

virtual void	write (const record &rec)=0
	The write method is used to write a recordonto an output. More...

virtual void	write_header (const record *=0)
	The write_header method is used to write a header record to the output. More...

virtual void	write_data (unsigned long, const void *, size_t)
	The write_data method is used to write data to the output. More...

virtual void	write_execution_start_address (const record *=0)
	The write_execution_start_address method is used to write an execution start address record to the output. More...

virtual void	line_length_set (int cols)=0
	The set_line_length method is used to set the maximum length of an output line, for those formats for which this is a meaningful concept, and the line length is at all controllable. More...

virtual void	address_length_set (int nbytes)=0
	The address_length_set method is used to set the minimum number of bytes to be written for addresses in the output, for those formats for which this is a meaningful concept, and the address length is at all controllable. More...

virtual int	preferred_block_size_get (void) const =0
	The preferred_block_size_get method is used to get the proferred block size of the output fformat. More...

virtual bool	preferred_block_size_set (int nbytes)=0
	The preferred_block_size_set method is is to set a precific number of bytes for the preferred block size. More...

virtual void	fatal_error (const char *fmt,...) const FORMAT_PRINTF(2
	The fatal_error method is used to report fatal errors. More...

virtual void virtual void	fatal_error_v (const char *fmt, va_list ap) const
	The fatal_error_v method is used to report fatal errors. More...

virtual void	fatal_error_errno (const char *fmt,...) const FORMAT_PRINTF(2
	The fatal_error_errno method is used to report fatal errors, and append the string equivalent of errno. More...

virtual void virtual void	fatal_error_errno_v (const char *fmt, va_list ap) const
	The fatal_error_errno_v method is used to report fatal errors. More...

virtual void	warning (const char *fmt,...) const FORMAT_PRINTF(2
	The warning method is used to likely but non-fatal errors. More...

virtual void virtual void	warning_v (const char *fmt, va_list ap) const
	The warning_v method is used to report likely but non-fatal errors. More...

virtual const char *	format_name (void) const =0
	The format_name method is used to obtain the name of this output format. More...

virtual void	notify_upper_bound (unsigned long addr)
	The notify_upper_bound method is used to notify the output class of the upper bound (highest address plus one) of the output to come. More...

virtual void	command_line (arglex_tool *cmdln)
	The command_line method is used by arglex_srec::get_output when parsing the command line, to give the format an opportunity to grab extra arguments off the command line. More...

Static Public Member Functions
static void	enable_header (bool yesno)
	The enable_header class method is used to enable or disable the writing of header records into output file, if the format supports optional header records. More...

static void	enable_data_count (bool yesno)
	The enable_data_count class method is used to enable or disable the writing of data record count records into output file, if the format supports optional data record count records. More...

static void	enable_goto_addr (bool yesno)
	The enable_goto_addr class method is used to enable or disable the writing of execution start address records into output file, if the format supports optional execution start address records. More...

static void	enable_footer (bool yesno)
	The enable_footer class method is used to enable or disable the writing of footer records into output file, if the format supports optional footer records. More...

static bool	enable_by_name (const std::string &name, bool yesno)
	The enable_by_name class method is used to enable or disable the writing of various records into output file. More...

static bool	line_termination_by_name (const std::string &name)
	The line_termination_by_name method is used to force line termination to a particular style, rather than the current operating system's native text format. More...

Protected Types
enum	line_termination_t { line_termination_native , line_termination_crlf , line_termination_nl , line_termination_binary = line_termination_nl , line_termination_cr , line_termination_primos }

Protected Member Functions
virtual void	put_char (int c)
	The put_char method is used to send a character to the output. More...

void	put_nibble (int value)
	The put_nibble method is used to send a hexadecimal digit (0..9, A..F) to the output. More...

virtual void	put_byte (unsigned char value)
	The put_byte method is used to send a byte value to the output. More...

virtual void	put_word_be (int value)
	The put_word_be method is used to send a 16-bit value to the output. More...

virtual void	put_word_le (int value)
	The put_word_le method is used to send a 16-bit value to the output. More...

virtual void	put_3bytes_be (unsigned long value)
	The put_3bytes_be method is used to send a 24-bit value to the output. More...

virtual void	put_3bytes_le (unsigned long value)
	The put_3bytes_le method is used to send a 24-bit value to the output. More...

virtual void	put_4bytes_be (unsigned long value)
	The put_4bytes_be method is used to send a 32-bit value to the output. More...

virtual void	put_4bytes_le (unsigned long value)
	The put_4bytes_le method is used to send a 32-bit value to the output. More...

void	checksum_reset (void)
	The checksum_reset method is used to set the running checksum to zero. More...

virtual void	checksum_add (unsigned char n)
	The checksum_add method is used to add another 8-bit value to the running checksum. More...

int	checksum_get (void)
	The checksum_get method is used to get the current value of the running checksum (added to by the checksum_add method, usually called by the put_byte method). More...

int	checksum_get16 (void)
	The checksum_get16 method is used to get the current value of the running checksum (added to by the checksum_add method, usually called by the put_byte method). More...

void	seek_to (unsigned long)
	The seek_to method is used to move the output position to the specified location in the output file. More...

void	put_string (const char *text)
	The put_string method is used to send a nul-terminated C string to the output. More...

void	put_string (const std::string &text)
	The put_string method is used to send C++ string to the output. More...

void	put_stringf (const char *,...) FORMAT_PRINTF(2
	The put_stringf method is used to send a formatted string to the output. More...

void	fatal_alignment_error (int alignment)
	The fatal_alignment_error method is used to report problems with unaligned data in formats that require aligned data. More...

void	fatal_hole_error (unsigned long lo, unsigned long hi)
	The fatal_hole_error method is used to report problems with holes in the data, for formats that cannot cope with them. More...

void	data_address_too_large (const record &record, unsigned nbits) const
	The data_address_too_large method is used to report fatal problems with data records, in the case where some or all of the address span of a record falls outside the format's ability to represent addresses. More...

Protected Member Functions inherited from srecord::output
	output ()
	The default constructor. More...

Static Protected Member Functions
static void	enable_optional_address (bool yesno)
	The enable_footer class method is used to enable or disable emitting optional address records. More...

static line_termination_t	line_termination_guess (void)
	The line_termination_guess class method is used to figure out the line termination style of the host environment. More...

Protected Attributes
int	checksum
	The checksum instance variable is used record the running checksum. More...

Static Protected Attributes
void static bool	enable_header_flag
	The enable_header_flag class variable is set by the enable_header method, to remember whether or not header records are to be emitted (if the format supports optional header records). More...

static bool	enable_data_count_flag
	The enable_data_count_flag class variable is set by the enable_data_count method, to remember whether or not data record count records are to be emitted (if the format supports optional data record count records). More...

static bool	enable_goto_addr_flag
	The enable_goto_addr_flag class variable is set by the enable_goto_addr method, to remember whether or not execution start address records are to be emitted (if the format supports optional execution start address records). More...

static bool	enable_footer_flag
	The enable_footer_flag class variable is set by the enable_footer method, to remember whether or not footer records (end-of-file record) are to be emitted (if the format supports optional footer records). More...

static bool	enable_optional_address_flag
	The enable_optional_address_records class variable is used to remember whether or not to emit optional address records. More...

static line_termination_t	line_termination
	The line_termination class variable is used to remember the desired line termination style. More...

Additional Inherited Members
Public Types inherited from srecord::output
typedef std::shared_ptr< output >	pointer

Detailed Description

The srecord::output_file class is used to represent a generic output file.

It provides a numnber of services useful to many output file formats.

Definition at line 33 of file file.h.

Member Enumeration Documentation

◆ line_termination_t

enum srecord::output_file::line_termination_t

protected

Enumerator
line_termination_native
line_termination_crlf
line_termination_nl
line_termination_binary
line_termination_cr
line_termination_primos

Definition at line 313 of file file.h.

Constructor & Destructor Documentation

◆ ~output_file()

virtual srecord::output_file::~output_file ( )

virtual

The destructor.

◆ output_file() [1/2]

srecord::output_file::output_file ( )

The default constructor.

Output will be sent to the standard output.

◆ output_file() [2/2]

srecord::output_file::output_file ( const std::string & file_name )

The constructor.

The output will be sent to the named file (or the standard output if the file name is "-").

Parameters

file_name The name of the file to be written.

Member Function Documentation

◆ filename()

virtual const std::string srecord::output_file::filename ( void ) const

virtual

The filename method is used to determine the name of the output file.

It is used for the various error messages. Derived classes must implement this method.

Implements srecord::output.

◆ enable_header()

static void srecord::output_file::enable_header ( bool yesno )

static

The enable_header class method is used to enable or disable the writing of header records into output file, if the format supports optional header records.

Parameters

yesno true if header records should be written, false if not

◆ enable_data_count()

static void srecord::output_file::enable_data_count ( bool yesno )

static

The enable_data_count class method is used to enable or disable the writing of data record count records into output file, if the format supports optional data record count records.

Parameters

yesno true if data record count records should be written, false if not

◆ enable_goto_addr()

static void srecord::output_file::enable_goto_addr ( bool yesno )

static

The enable_goto_addr class method is used to enable or disable the writing of execution start address records into output file, if the format supports optional execution start address records.

Parameters

yesno true if execution start address records should be written, false if not

◆ enable_footer()

static void srecord::output_file::enable_footer ( bool yesno )

static

The enable_footer class method is used to enable or disable the writing of footer records into output file, if the format supports optional footer records.

Parameters

yesno true if footer records should be written, false if not

◆ enable_by_name()

static bool srecord::output_file::enable_by_name	(	const std::string &	name,
		bool	yesno
	)

static

The enable_by_name class method is used to enable or disable the writing of various records into output file.

Parameters

name	the name of the record type to enable or disable
yesno	true if should be enable, false if sjould be disabled

Returns: true if name understood, false if not (to trigger diagnostic error message)

◆ line_termination_by_name()

static bool srecord::output_file::line_termination_by_name ( const std::string & name )

static

The line_termination_by_name method is used to force line termination to a particular style, rather than the current operating system's native text format.

Parameters

name	The name of the line termination style to be used, e.g. "crlf" or "nl".

Returns: true if successful, false if name unknown

◆ put_char()

virtual void srecord::output_file::put_char ( int c )

protectedvirtual

The put_char method is used to send a character to the output.

Usually, this is sufficient, however derived classes may over-ride it if they have a special case. Over-ride with caution, as it affects many other methods.

Reimplemented in srecord::output_file_ti_tagged_16, and srecord::output_file_ti_tagged.

◆ put_nibble()

void srecord::output_file::put_nibble ( int value )

protected

The put_nibble method is used to send a hexadecimal digit (0..9, A..F) to the output.

It calls put_char to send the output.

◆ put_byte()

virtual void srecord::output_file::put_byte ( unsigned char value )

protectedvirtual

The put_byte method is used to send a byte value to the output.

The default implementation is to call the put_nibble method twice, big-endian (most significant nibble first).

The value of the byte will be added to the running checksum, via the checksum_add method.

Usually, this put_byte method implemention is sufficient for most output classes, however derived classes may over-ride it if they have a special case. Over-ride with caution, as it affects many other methods.

Reimplemented in srecord::output_file_wilson, srecord::output_file_tektronix, and srecord::output_file_stewie.

◆ put_word_be()

virtual void srecord::output_file::put_word_be ( int value )

protectedvirtual

The put_word_be method is used to send a 16-bit value to the output.

The put_byte method is called twice, and the two byte values are sent big-endian (most significant byte first).

◆ put_word_le()

virtual void srecord::output_file::put_word_le ( int value )

protectedvirtual

The put_word_le method is used to send a 16-bit value to the output.

The put_byte method is called twice, and the two byte values are sent little-endian (least significant byte first).

◆ put_3bytes_be()

virtual void srecord::output_file::put_3bytes_be ( unsigned long value )

protectedvirtual

The put_3bytes_be method is used to send a 24-bit value to the output.

The put_byte method is called three times, and the three byte values are sent big-endian (most significant byte first).

◆ put_3bytes_le()

virtual void srecord::output_file::put_3bytes_le ( unsigned long value )

protectedvirtual

The put_3bytes_le method is used to send a 24-bit value to the output.

The put_byte method is called three times, and the three byte values are sent little-endian (least significant byte first).

◆ put_4bytes_be()

virtual void srecord::output_file::put_4bytes_be ( unsigned long value )

protectedvirtual

The put_4bytes_be method is used to send a 32-bit value to the output.

The put_byte method is called four times, and the four byte values are sent big-endian (most significant byte first).

◆ put_4bytes_le()

virtual void srecord::output_file::put_4bytes_le ( unsigned long value )

protectedvirtual

The put_4bytes_le method is used to send a 32-bit value to the output.

The put_byte method is called four times, and the four byte values are sent little-endian (least significant byte first).

◆ checksum_reset()

void srecord::output_file::checksum_reset ( void )

protected

The checksum_reset method is used to set the running checksum to zero.

◆ checksum_add()

virtual void srecord::output_file::checksum_add ( unsigned char n )

protectedvirtual

The checksum_add method is used to add another 8-bit value to the running checksum.

The default implementation uses a simple addition. Derived classesmay override if they need to. Do this with caution, as it affects other methods.

Reimplemented in srecord::output_file_signetics.

◆ checksum_get()

int srecord::output_file::checksum_get ( void )

protected

The checksum_get method is used to get the current value of the running checksum (added to by the checksum_add method, usually called by the put_byte method).

Only the lower 8 bits of the sum are returned.

◆ checksum_get16()

int srecord::output_file::checksum_get16 ( void )

protected

The checksum_get16 method is used to get the current value of the running checksum (added to by the checksum_add method, usually called by the put_byte method).

Only the lower 16 bits of the sum are returned.

◆ seek_to()

void srecord::output_file::seek_to ( unsigned long )

protected

The seek_to method is used to move the output position to the specified location in the output file.

◆ put_string() [1/2]

void srecord::output_file::put_string ( const char * text )

protected

The put_string method is used to send a nul-terminated C string to the output.

Multiple calls to put_char are made.

◆ put_string() [2/2]

void srecord::output_file::put_string ( const std::string & text )

protected

The put_string method is used to send C++ string to the output.

Multiple calls to put_char are made.

Parameters

text	The string to print.

◆ put_stringf()

void srecord::output_file::put_stringf	(	const char *	,
			...
	)

protected

The put_stringf method is used to send a formatted string to the output.

The format and operation ios similar to the standard printf function. Multiple calls to put_char are made.

◆ enable_optional_address()

static void srecord::output_file::enable_optional_address ( bool yesno )

staticprotected

The enable_footer class method is used to enable or disable emitting optional address records.

Parameters

yesno true if records should be written, false if not

◆ line_termination_guess()

static line_termination_t srecord::output_file::line_termination_guess ( void )

staticprotected

The line_termination_guess class method is used to figure out the line termination style of the host environment.

◆ fatal_alignment_error()

void srecord::output_file::fatal_alignment_error ( int alignment )

protected

The fatal_alignment_error method is used to report problems with unaligned data in formats that require aligned data.

It suggests a fill to fix the problem.

Parameters

alignment The necessary byte alignment

◆ fatal_hole_error()

void srecord::output_file::fatal_hole_error	(	unsigned long	lo,
		unsigned long	hi
	)

protected

The fatal_hole_error method is used to report problems with holes in the data, for formats that cannot cope with them.

◆ data_address_too_large()

void srecord::output_file::data_address_too_large	(	const record &	record,
		unsigned	nbits
	)		const

protected

The data_address_too_large method is used to report fatal problems with data records, in the case where some or all of the address span of a record falls outside the format's ability to represent addresses.

Parameters

record	The offending data record.
nbits	The number of bits in the available address range

Member Data Documentation

◆ enable_header_flag

void static bool srecord::output_file::enable_header_flag

staticprotected

The enable_header_flag class variable is set by the enable_header method, to remember whether or not header records are to be emitted (if the format supports optional header records).

Definition at line 271 of file file.h.

◆ enable_data_count_flag

bool srecord::output_file::enable_data_count_flag

staticprotected

The enable_data_count_flag class variable is set by the enable_data_count method, to remember whether or not data record count records are to be emitted (if the format supports optional data record count records).

Definition at line 279 of file file.h.

◆ enable_goto_addr_flag

bool srecord::output_file::enable_goto_addr_flag

staticprotected

The enable_goto_addr_flag class variable is set by the enable_goto_addr method, to remember whether or not execution start address records are to be emitted (if the format supports optional execution start address records).

Definition at line 287 of file file.h.

◆ enable_footer_flag

bool srecord::output_file::enable_footer_flag

staticprotected

The enable_footer_flag class variable is set by the enable_footer method, to remember whether or not footer records (end-of-file record) are to be emitted (if the format supports optional footer records).

Definition at line 295 of file file.h.

◆ enable_optional_address_flag

bool srecord::output_file::enable_optional_address_flag

staticprotected

The enable_optional_address_records class variable is used to remember whether or not to emit optional address records.

Defaults to true. Set by the enable_by_name method.

Definition at line 302 of file file.h.

◆ line_termination

line_termination_t srecord::output_file::line_termination

staticprotected

The line_termination class variable is used to remember the desired line termination style.

Defaults to the native style of the current operating system.

Definition at line 328 of file file.h.

◆ checksum

int srecord::output_file::checksum

protected

The checksum instance variable is used record the running checksum.

NEVER access this variable directly. Always use the checksum_reset method to set it mack to its initial state. Always use the checksum_add method to add a byte to it. Always use the checksum_get or checksum_get16 methods to read its value.

Definition at line 369 of file file.h.

The documentation for this class was generated from the following file:

output/file.h

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ line_termination_t

Constructor & Destructor Documentation

◆ ~output_file()

◆ output_file() [1/2]

◆ output_file() [2/2]

Member Function Documentation

◆ filename()

◆ enable_header()

◆ enable_data_count()

◆ enable_goto_addr()

◆ enable_footer()

◆ enable_by_name()

◆ line_termination_by_name()

◆ put_char()

◆ put_nibble()

◆ put_byte()

◆ put_word_be()

◆ put_word_le()

◆ put_3bytes_be()

◆ put_3bytes_le()

◆ put_4bytes_be()

◆ put_4bytes_le()

◆ checksum_reset()

◆ checksum_add()

◆ checksum_get()

◆ checksum_get16()

◆ seek_to()

◆ put_string() [1/2]

◆ put_string() [2/2]

◆ put_stringf()

◆ enable_optional_address()

◆ line_termination_guess()

◆ fatal_alignment_error()

◆ fatal_hole_error()

◆ data_address_too_large()

Member Data Documentation

◆ enable_header_flag

◆ enable_data_count_flag

◆ enable_goto_addr_flag

◆ enable_footer_flag

◆ enable_optional_address_flag

◆ line_termination

◆ checksum
